Marvels of Engineering in Mechanical Watches: In Search of Time

March 24, 2025 • ☕️☕️ 9 min read • 🏷 general, watch

Translated by author into: English


The Roots of Mechanical Watchmaking

Humanity has felt the need to measure and track time since the earliest days of civilization. The transition from primitive time measuring tools such as sundials, water clocks, and hourglasses to complex mechanical watches is an impressive indicator of human intelligence and creativity. Mechanical clocks began to emerge in Europe in the 13th century and have continuously evolved since then, both in functionality and aesthetics.

The first mechanical clocks were large, heavy structures usually mounted on churches or city towers. These early clocks relied on weight-driven systems and used a verge and foliot balance mechanism for timekeeping. This mechanism was quite primitive compared to more precise systems invented in later centuries, but it was revolutionary for its time.

Medieval Tower Clock Example

The Invention of the Spring and Portable Watches

Towards the end of the 15th century, a significant development revolutionized mechanical watches: the invention of the spring mechanism. Watchmakers began using spring power instead of weights, which allowed clocks to be significantly reduced in size and made portable. A spiral spring would be wound around a spindle and provide energy as it was gradually released.

The first portable watches appeared at the beginning of the 16th century and were about the size of an apple. These early pocket watches were known as drum watches and were typically luxury items that could only be owned by wealthy aristocrats and merchants. Over time, watches became smaller, more precise, and more accessible.

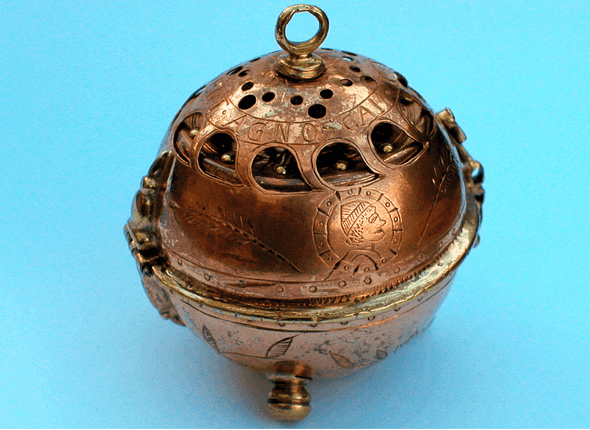

16th Century Drum Watch

Pendulum Clocks and Huygens’ Contribution

Another important milestone in mechanical watchmaking was the invention of the pendulum clock by Christiaan Huygens in 1656. Inspired by Galileo Galilei’s studies of pendulums, Huygens developed a clock that used the constant oscillation of a pendulum as a timekeeping mechanism, making it much more precise than previous mechanical clocks.

Pendulum clocks provided a major improvement in timekeeping accuracy, reducing the error rate from minutes to seconds per day. This development was particularly critical for maritime navigation, as sailors needed precise time measurements for longitude calculations.

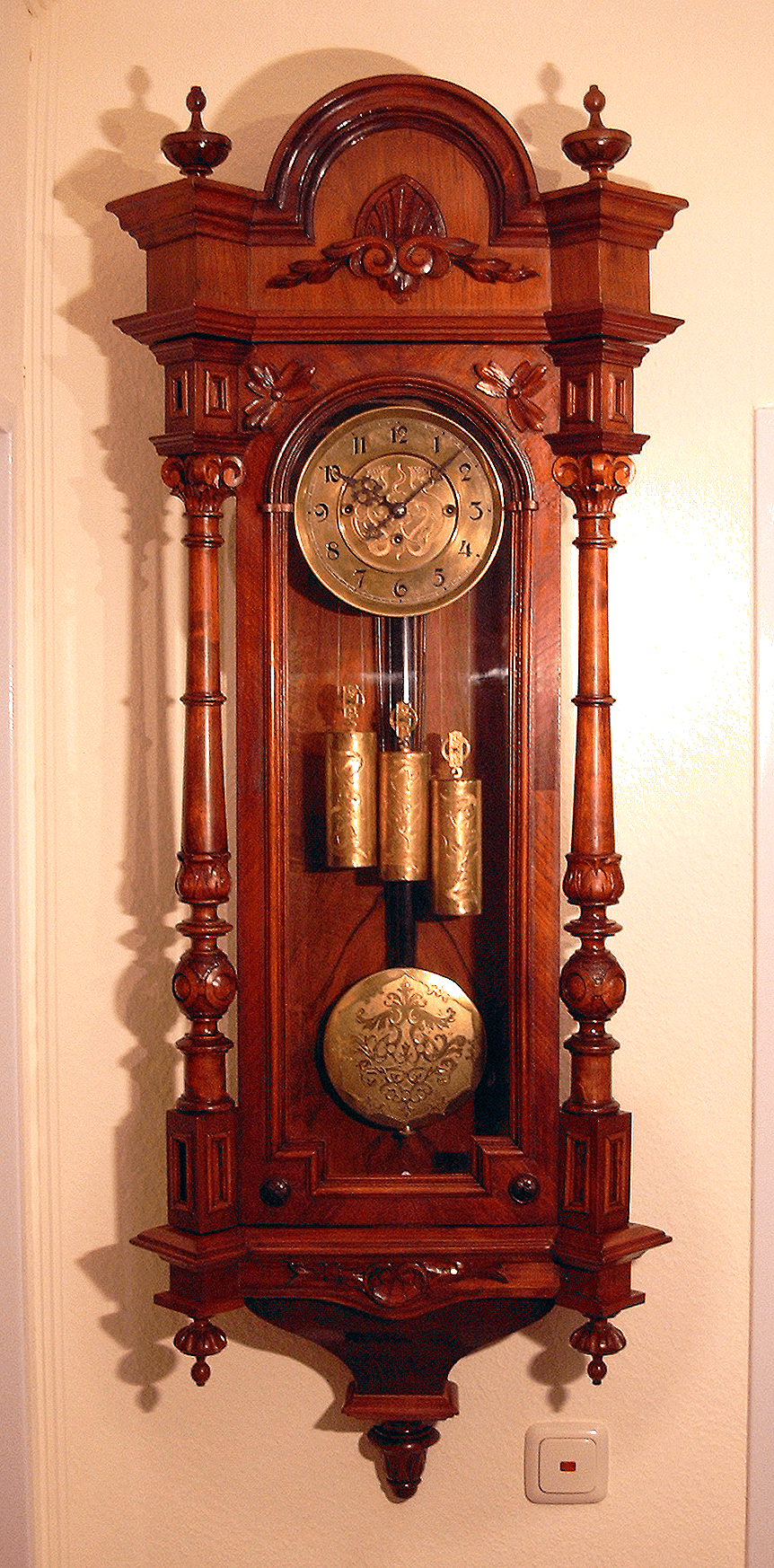

Pendulum Wall Clock

The Escapement Mechanism: The Heart of Mechanical Watches

One of the most important components of a mechanical watch is the escapement mechanism. This ingenious system releases energy from the power source (weight or spring) in a controlled manner, ensuring that the clock runs at a regular rhythm.

Throughout history, various escapement designs have been developed, each aiming to improve timekeeping accuracy:

  1. Verge Escapement - One of the oldest types, used from the 14th century onwards

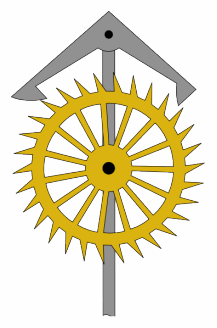

  2. Anchor Escapement - Invented by Robert Hooke in 1657, made pendulum clocks more efficient
  3. Deadbeat Escapement - Developed by George Graham in 1675, provided more precise timekeeping
  4. Detent Escapement - Commonly used in marine chronometers
  5. Lever Escapement - A design still used in most modern mechanical wristwatches

Each escapement design was developed to enhance the watch’s accuracy, reliability, and efficiency characteristics.

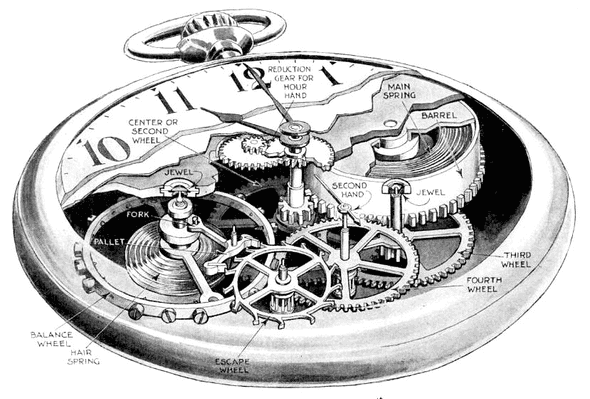

Lever Escapement Mechanism

Marine Chronometers and John Harrison’s Achievement

In the 18th century, perhaps one of the most important advances in mechanical watchmaking was accomplished by John Harrison. The English carpenter and watchmaker devoted his life to overcoming the challenge of creating a time measuring device accurate enough for sailors to use in longitude calculations.

After years of work, Harrison developed the first reliable marine chronometer that could work at sea and erred by only a few seconds per day. His H4 chronometer was a masterpiece that could keep accurate time without being affected by temperature changes, humidity, and ship movements.

Harrison’s success not only transformed maritime navigation but also set a new standard for the development of precise mechanical watchmaking. His innovations included many technical solutions that formed the foundation of modern watchmaking.

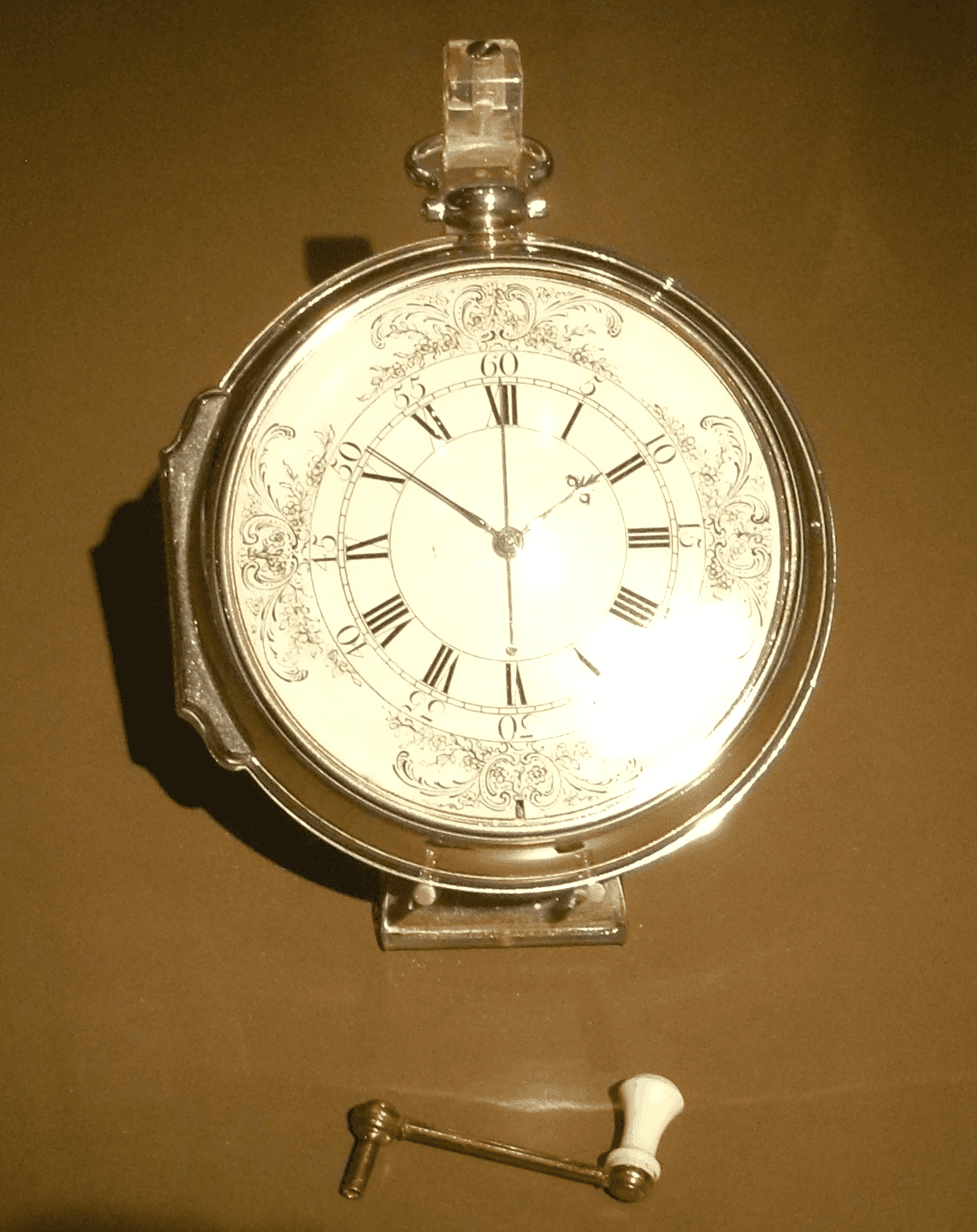

John Harrison's H4 Chronometer

Complications: The Pinnacle of Mechanical Mastery

One of the most fascinating aspects of mechanical watchmaking is the additional functions known as complications. These complex mechanisms go beyond the basic timekeeping function of the watch, becoming true technical displays of watchmaking craftsmanship.

Common complications include:

  • Chronograph - A stopwatch function used to measure short time intervals
  • Perpetual Calendar - A calendar that automatically adjusts for different month lengths and leap years
  • Moon Phase Display - A mechanism that shows the current phase of the moon
  • Tourbillon - A rotating cage designed to compensate for the effects of gravity
  • Minute Repeater - A complex mechanism that chimes the time when a button is pressed
  • Equation of Time - An indicator showing the difference between true solar time and mean solar time

The most complex mechanical watches are true engineering marvels consisting of thousands of carefully crafted and assembled parts and requiring years of work.

Swiss Watchmaking: Symbol of Perfection

Swiss watchmaking has become almost synonymous with mechanical watches, and this is no coincidence. In the 16th century, Calvinist reforms in Geneva, Switzerland prohibited jewelry making, leading many craftsmen to redirect their skills to watchmaking. This formed the foundation for Switzerland’s watchmaking industry.

This watchmaking tradition, which extends along the Jura mountains, evolved and was perfected over centuries. Swiss watchmakers developed a highly specialized “établissage” (assembly) system, which began as an additional source of income for farmers during winter months.

Today, Swiss brands such as Patek Philippe, Audemars Piguet, Vacheron Constantin, and Rolex represent the pinnacle of mechanical watchmaking. These brands continue to produce extraordinary timepieces by combining traditional craftsmanship with modern technology and innovation.

Automatic Winding Mechanisms

Towards the end of the 18th century, automatic winding mechanisms became an important innovation in mechanical watches. Inventors such as Abraham-Louis Perrelet and Hubert Sarton developed systems that eliminated the need to manually wind the watch.

Most modern automatic watches use a mechanism based on a weight known as a “rotor” that rotates with the natural hand movements of the user. This rotational movement is transferred to a series of gears that wind the main spring of the watch, allowing it to continue running continuously.

This innovation greatly increased the practicality of mechanical watches and has become a standard feature of luxury mechanical wristwatches today.

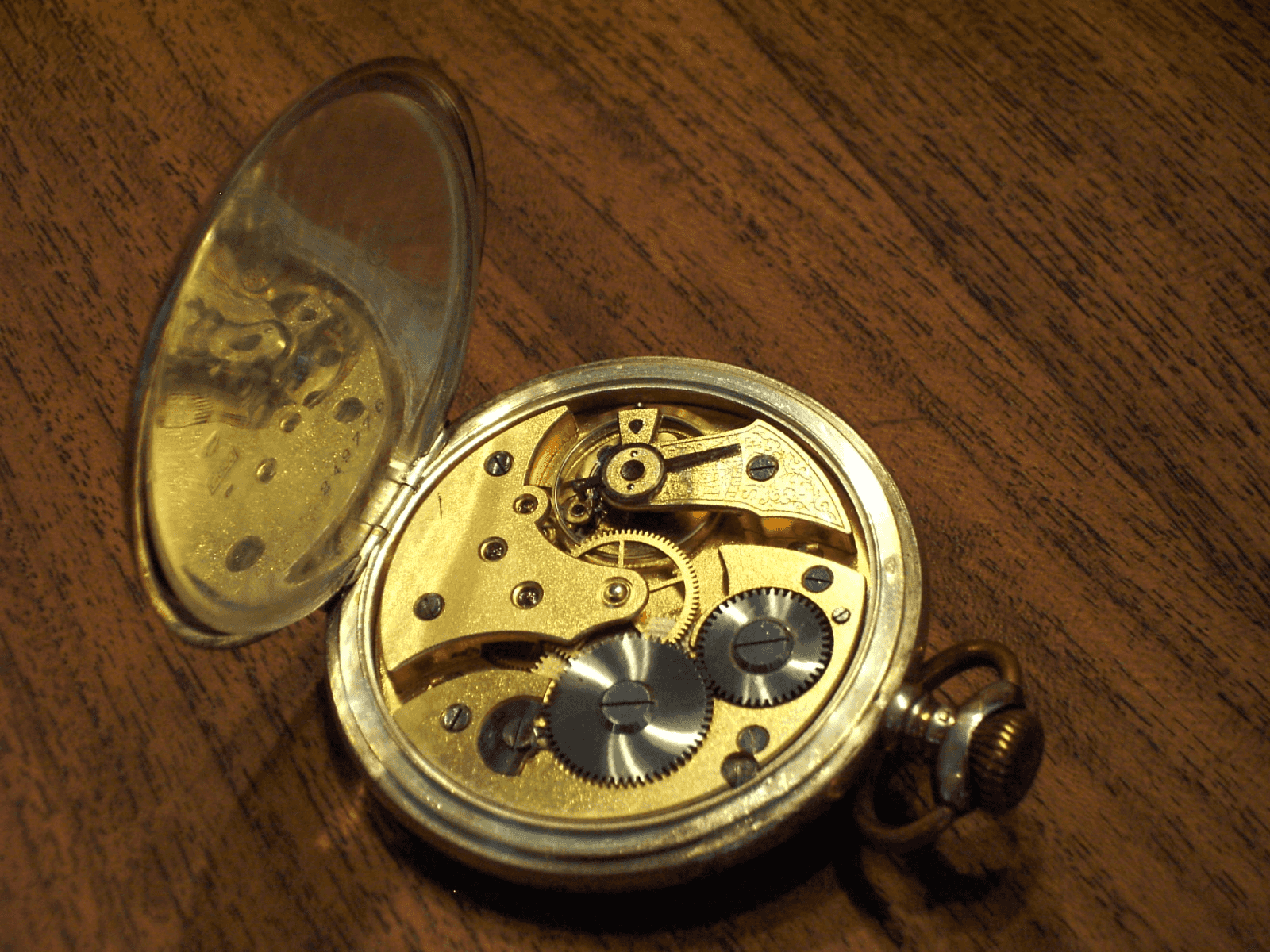

Automatic Watch Mechanism

Modern Mechanical Watchmaking and Revival

The proliferation of digital and quartz watches in the 1970s plunged the Swiss watch industry into a major crisis. However, from the late 1980s onwards, interest in mechanical watches was revived. This renaissance was based on the appreciation of mechanical watches not just as timekeeping tools, but as examples of engineering excellence and traditional craftsmanship.

Today, mechanical watchmaking both respects tradition and brings boundary-pushing innovations. Modern materials and manufacturing techniques, with silicon parts, new metal alloys, and advanced surface treatments, further enhance the accuracy and reliability of traditional watchmaking craftsmanship.

At the same time, small workshops and individual masters known as independent watchmakers are pushing the boundaries of mechanical watchmaking with extraordinary and innovative designs.

Collecting and the Value of Mechanical Watches

Today, high-quality mechanical watches function not only as timekeeping tools but also as valuable collection pieces. Especially vintage or antique mechanical watches carry high value as tangible examples of watchmaking history and engineering mastery.

Watches sold at record prices in auctions, such as rare examples from prestigious brands like Patek Philippe and Rolex, demonstrate that these mechanical marvels are not just temporary fashion items but heritage pieces that can retain their value for generations.

Mechanical watch collecting has become a sophisticated pursuit requiring both historical and technical understanding. Collectors look for rare variants of specific models, significant complications, or pieces with interesting historical significance.

Craftsmanship and Artistic Value in Mechanical Watches

It’s important to note that beyond being engineering marvels, mechanical watches are also extraordinary works of craftsmanship and art. The fine guilloche patterns on watch dials, hand-carved bridges and plates, and elegant heat-blued screws emphasize the aesthetic dimension of the watchmaking craft.

In the making of luxury mechanical watches, each component is often polished, decorated, and assembled by hand. This process can take hundreds or even thousands of hours per watch and requires skills passed down through generations.

At this level, known as Haute Horlogerie (High Watchmaking), functionality and aesthetics blend perfectly. These watches are also considered functioning works of art, examples of design, and expressions of human creativity.

Watch Mechanism Handcrafting

The Future of Mechanical Watches

In the digital age and in a world where atomic clocks can keep time with nanosecond precision, it is remarkable that mechanical watches continue to exist and even develop. This is a testament to the durability and magic of a completely mechanical, man-made device.

In the future, integration between traditional craftsmanship and advanced technology will likely increase. New materials, computer-aided design, and precise manufacturing techniques will further enhance the performance and reliability of mechanical watches.

At the same time, mechanical watches may strengthen their position as symbols of timeless value and permanence in the face of increasing digitalization and rapidly changing consumer culture. A mechanical watch can work for generations with proper maintenance - creating a striking contrast with the short lifespan of most digital devices.

In today’s world, a mechanical watch is not just a timekeeping tool, but also a statement about technical excellence, historical continuity, and human creativity.

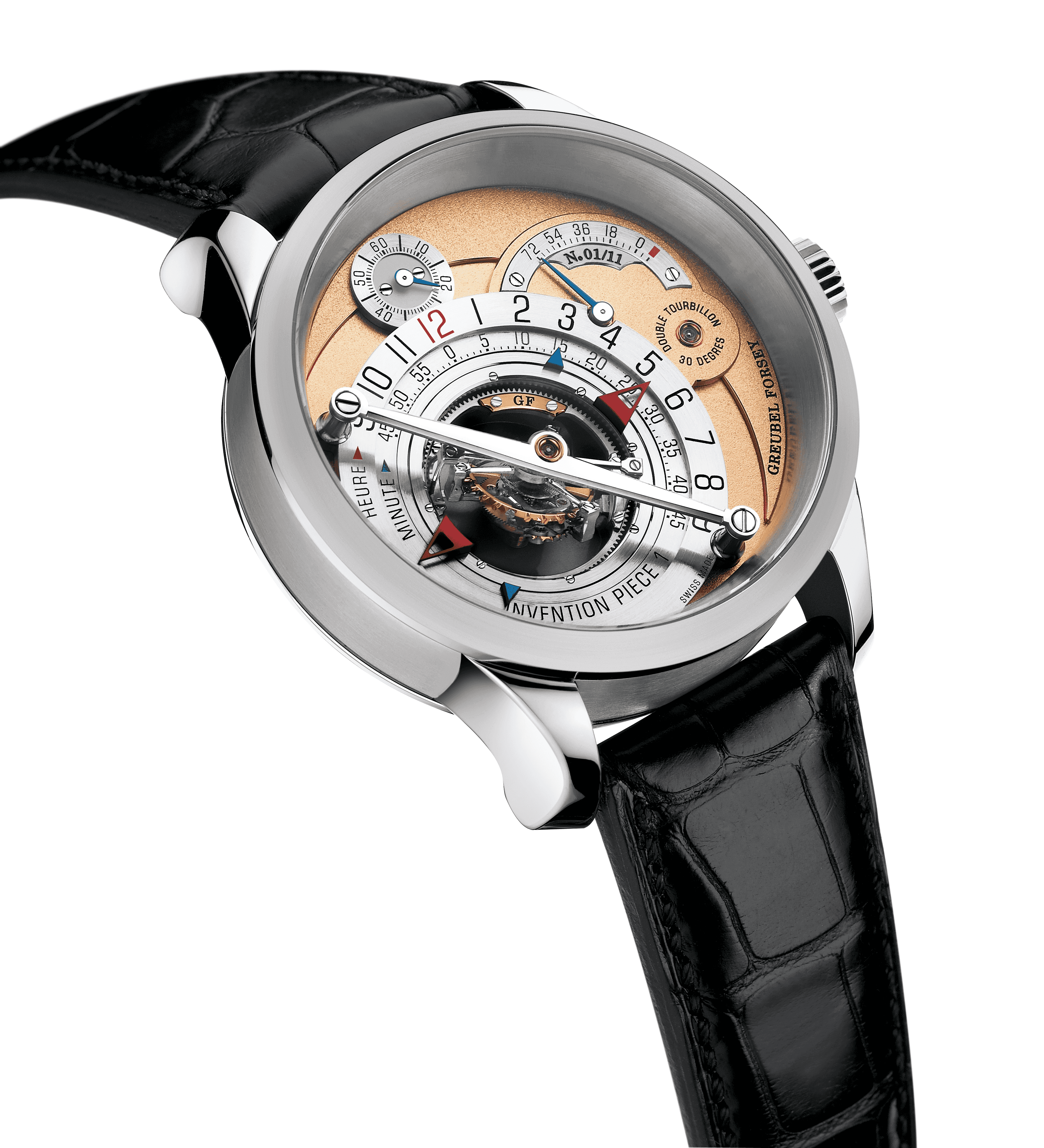

Next Generation Mechanical Watch Concept

Conclusion

Mechanical watches continue to be extraordinary engineering marvels that have evolved and been perfected over centuries. From simple weight-driven mechanisms to today’s complex watches processed with microscopic tolerances, the art and science of watchmaking has been one of the best examples of human intelligence and creativity.

These mechanical masterpieces not only measure time but also represent humanity’s effort to master precise mechanical systems and to domesticate time itself. The perfect harmony of hundreds of moving parts working in a small space is a reminder of how impressive human achievement can be.

Even in the digital age, the ongoing popularity and value of mechanical watches show that these precise machines have a meaning that goes beyond mere functionality. A mechanical watch is a timeless piece of craftsmanship, innovation, and engineering excellence - an object that preserves and celebrates our connection with the past in a world where technology is rapidly advancing.

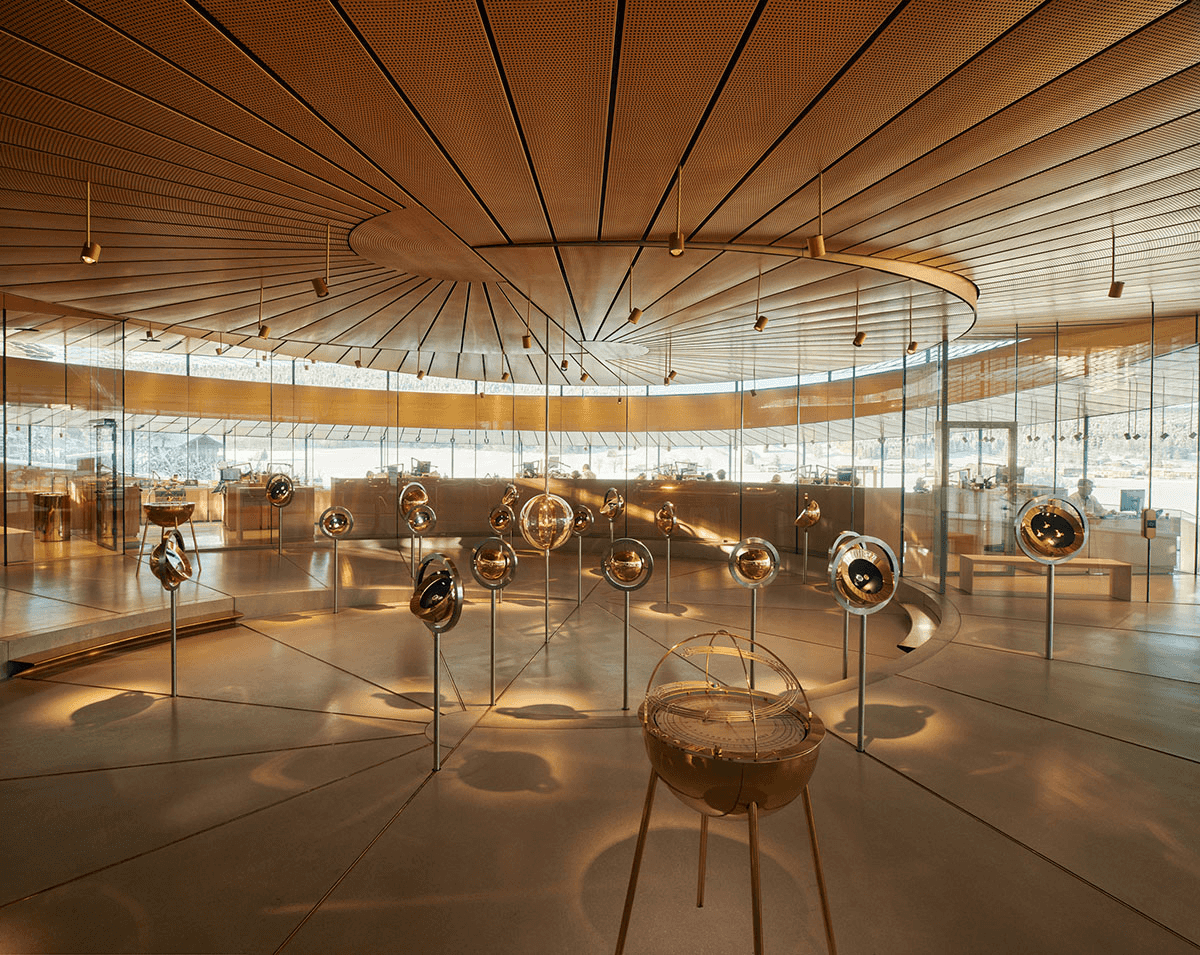

Swiss Watchmaking Museum
